The "Jerred Honda TL"

 We take a look at the little known Jerred framed Honda, with increased capacity, Honda TL 125cc engine.

~~~~~~~

The Jerred/Mills Honda...

The frames were actually designed  by the late Mike Mills of later BSA fame, But built by Bill Wooldridge from Weedon, Northhants.

And now we have a good photo of one of those actual frames, you can see that it was the Mike Mills Jerred Honda influence, that led to the later now famous

Mike Mills BSA frames.

Bill Wooldridge tells me that he actualy worked on more projects with Mike Mills, including the MM designed Swindon swing link suspension moto-crossers that Gary Dunn rode so well.

~~~~~~~

John Dickenson of T+MX, remembers Mike Mills. 2010.

I even once built a trials bike that Mick had designed, the Jerred Honda. Again, this was the early 1980's and again Mick was years ahead of his time, having come up with a long-travel twin-shock chassis for the TL 125 Honda engine. Out of the blue he rang me up just a couple of years ago and joked: “If you fancy building another I’ve just found my original drawings for the Jerred so we can knock one up if you like!”

16/01/2020..

John Dickenson just added to the story...

Hi Charlie

Just been reading your Jerred Honda story on your hugely entertaining, not to mention informative, website.

It has increasingly annoyed me that I don't even have a picture of the Jerred I built. I built it - mine had a TL125 motor bored out to 150 - and rode it in one trial and then the Ossa Gripper came out and I just had to have one of those.

I advertised the Jerred and a chap came over from Middlesbrough (to Ulverston in Cumbria) to see it. I was at work at the time and my Dad showed him the bike. He didn't even quibble over the price - told Dad he owned a pub and just wanted something to put in the beer garden as a talking point. It did look fantastic in red and chrome. The gent just handed over the money - can't even remember how much I asked - and took the bike.

Often wondered what became of it.

Mick Mills was such a nice chap - as is Pete Jerred of course.

Keep up the good work.

JD...





 Charlie.~Oo> I wonder if this machine is still around? Someone may remember it...





Photo's Courtesy of Alan "J" where stated, and his ©...

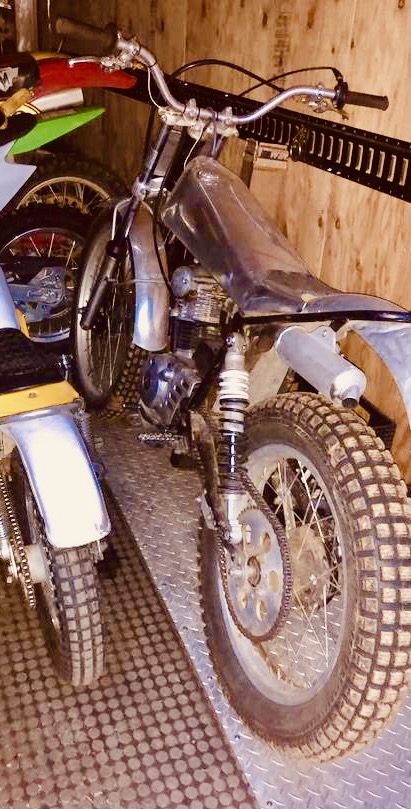

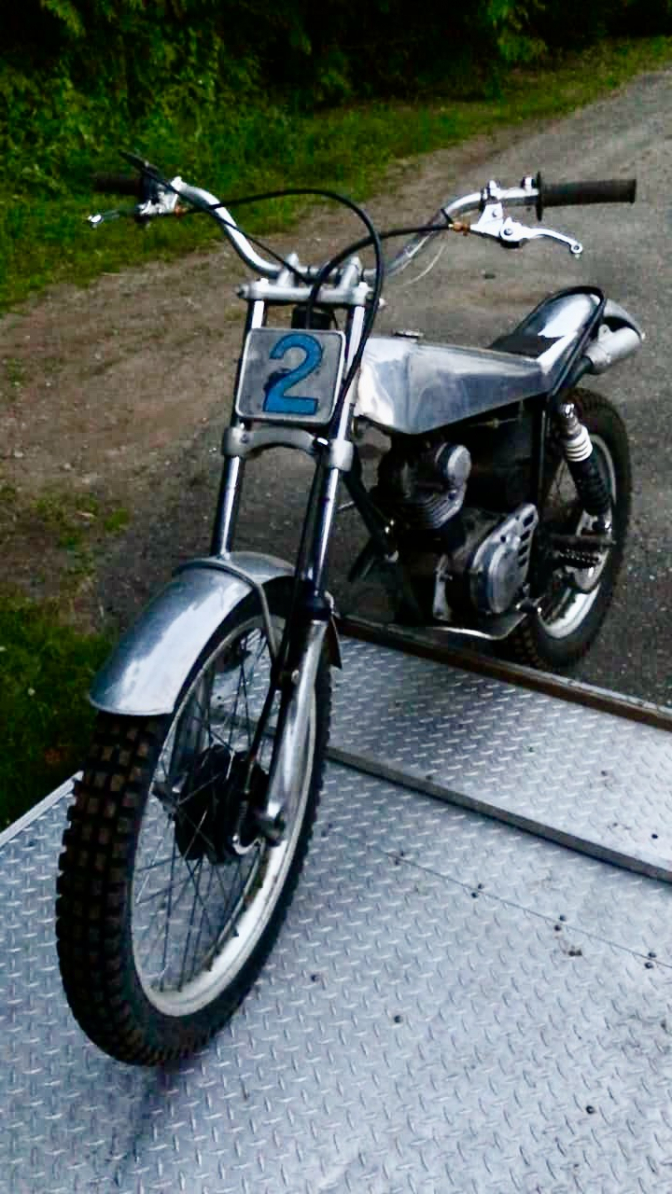

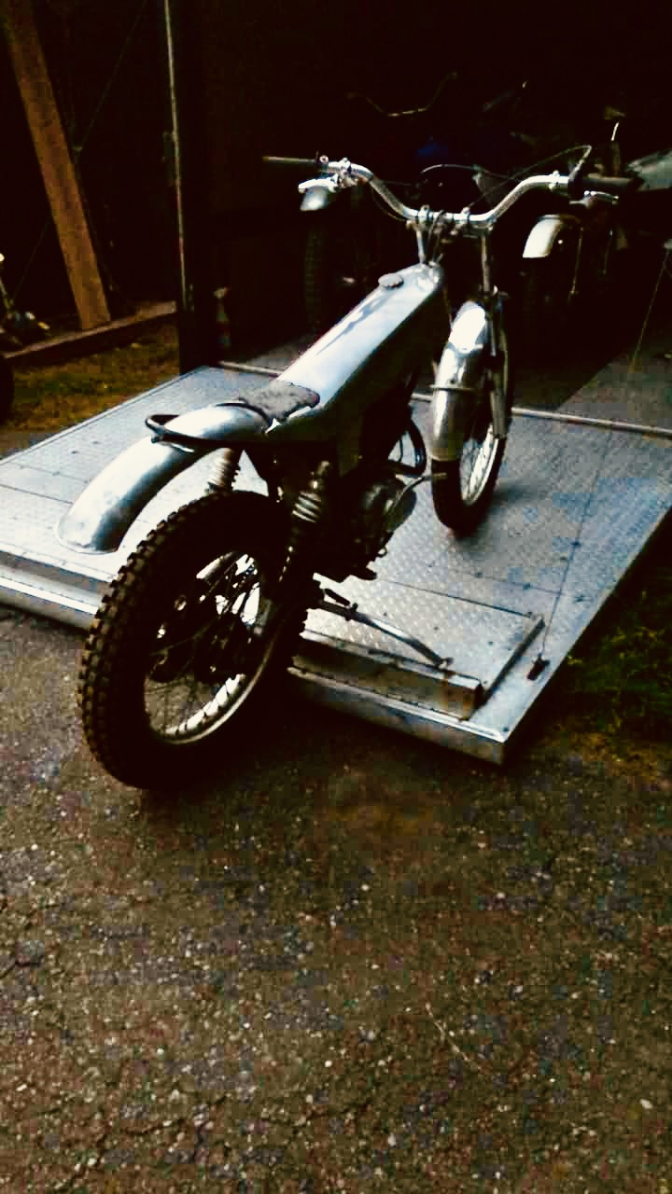

This is a shot of the machine that Alan has just purchased, although he already had another Jerred Honda Frame.

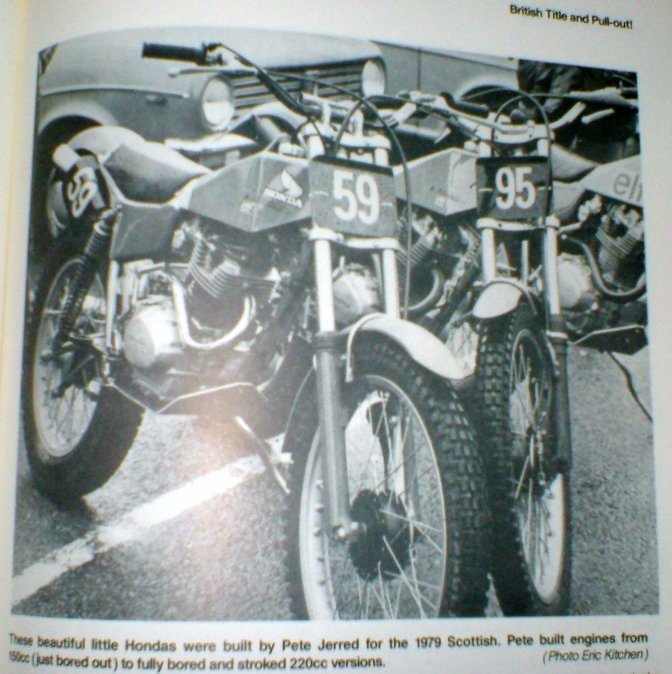

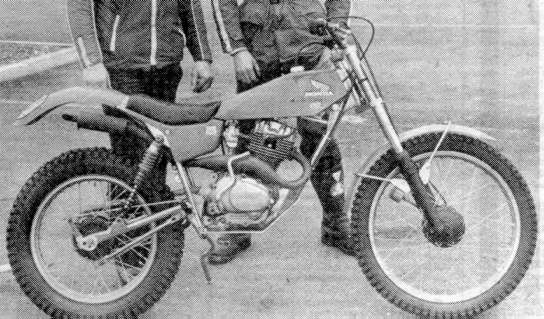

This photo from the magazine -book, was probably the best photo we had of a Jerred Honda before I started this page.

These two bikes waiting to compete in the SSDT.

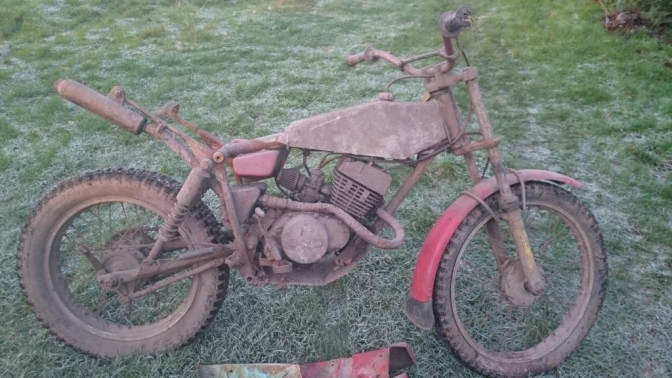

And this shot Courtesy Eurospares.

Note: Mike Mills was already into the stealth looking designed fuel-tanks at this time...

Alan "J" needs two of these tanks making for his bikes he says...





Full Photo now later, 2019, from Peter Jerred.©...

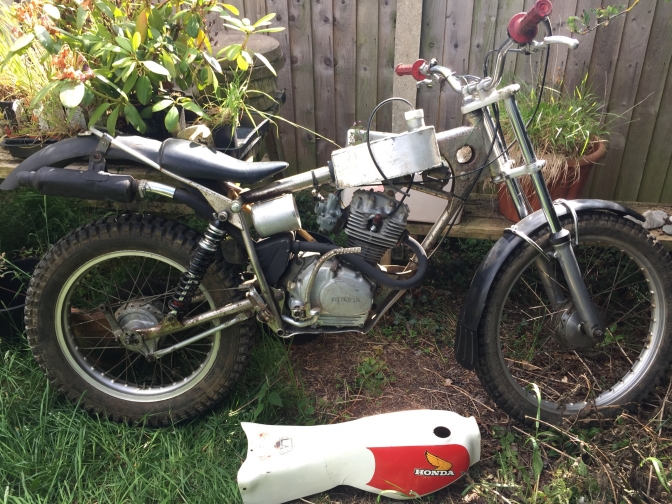

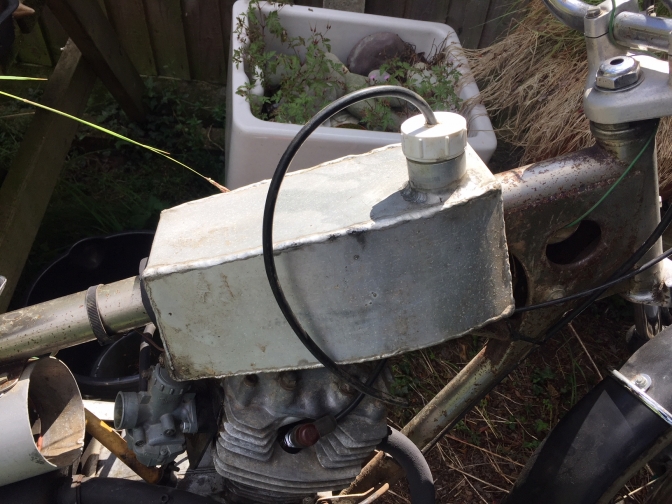

This is what was lurking under the cover of Alan"J"'s new acquisition.

But this photo also gives a better view of the frame make up.





Although this little tank does it's job, a better modification would have been to store the fuel in the top tube of the frame, like we do on the Mini-Otter"Super-Cub" frame, that don't forget is based on the Mike Mills frame layout too...



Photo Courtesy Otterman...

Not a good photo, but you can just see the fuel is carried in the top tube of the

Mini-Otter...Number One...

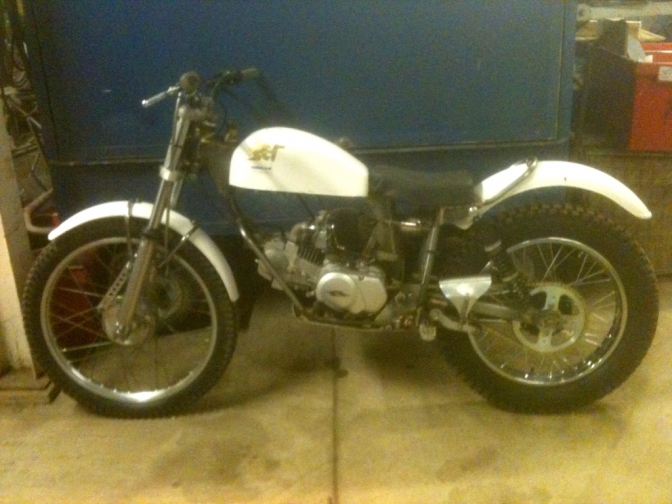

This Jerred Honda machine although it now has a Suzuki engine fitted, was confirmed by Pete Jerred as being one of his frames.

Now I have Pete's phone number and intend to speak to him shortly about his little Honda powered machine and how they came about.

 So watch this space.

Story now down the page...

~~~~~~~

Now we get to the pictures that basically tell the tale of the number of  UK manufactures that built frames to suit the little Honda TL 125 engine, although most were bored out or stroked versions of the same...



These four photos are © of Alan "J".

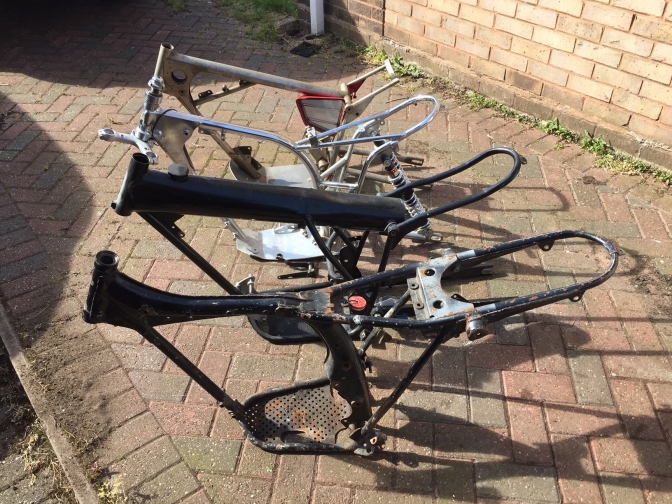

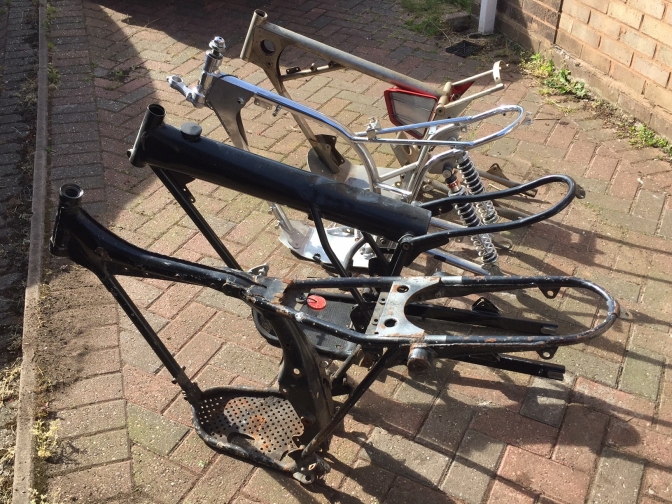

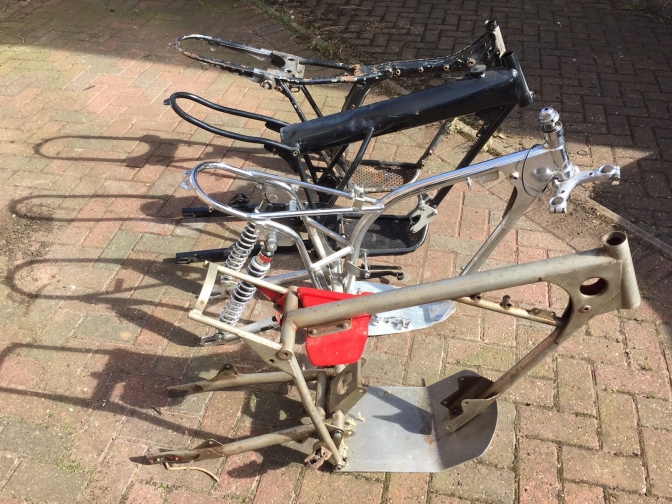

Here is the collection of frames, and only one missing for the full set, a Seeley...

 So they are from the front running back Honda TL125, standard frame.

A Fraser Honda Mk2 frame...

A Sammy Miller Honda Hi-Boy frame, and the one we are interested in on this page, Pete Jerred, Mike Mills, frame...



Photo Courtesy Alan "J".©...

Alan "J" is going to weigh the frames for us when he gets time.

That should be interesting, The TL Honda frame is off to the powder-coaters he says...

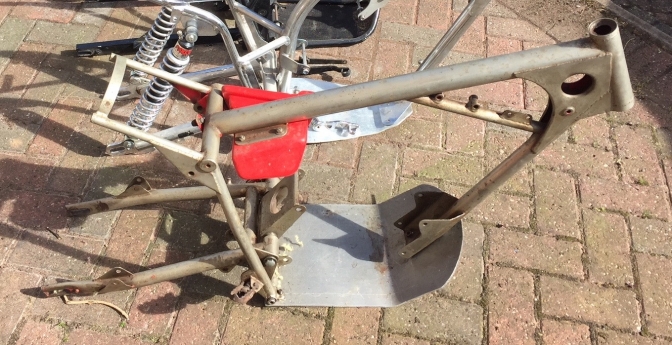

Photo Courtesy  Alan "J".©

You can see from this shot that the influence of this Jerred-Mike Mills frame was passed down the line, to the later BSA frames Mike built, even down to the connection at the rear of the engine linking the swinging arm directly to this...



Photo Courtesy Alan "J" and © Copyright.

~~~~~~~

There is something about a well designed and built frame, and more a work of art, than an object to perform a job.

Without ever seeing one of these frames close up before, I am glad the design of the Mini-Otter "Super-Cub" very much followed these lines.

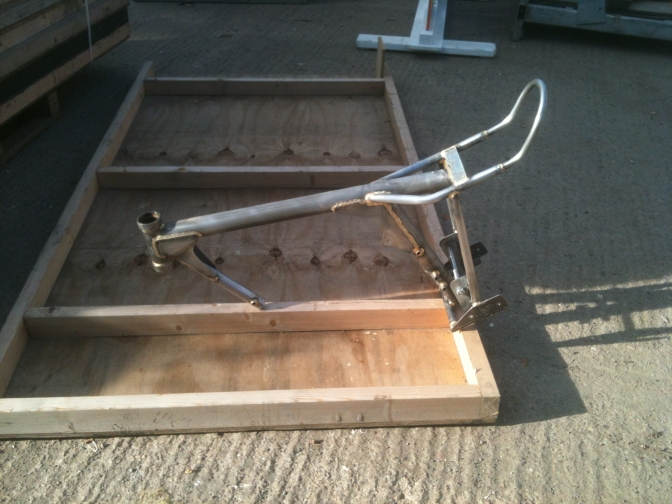

Photo "Otterman"...

The Mk two Mini-Otter Super-Cub frame.



27/06/2018.



After doing a bit more research on the Jerred Honda bikes,

 It seems 25 of the frames were built.

Mike Mills designed them, and it was alleged they were built by a company named

Magnum Engineering from Weedon Northamptonshire.

Note: Looks like Magnum Engineering have long gone since this information.

That statement was NOT strictly true, the frames were actually built by Bill Wooldridge, who now lives in the USA, and builds race-car chassis, etc. Bill also used to work for Lola race cars in 1968-72.

Confirmed now by  Peter Jerred...

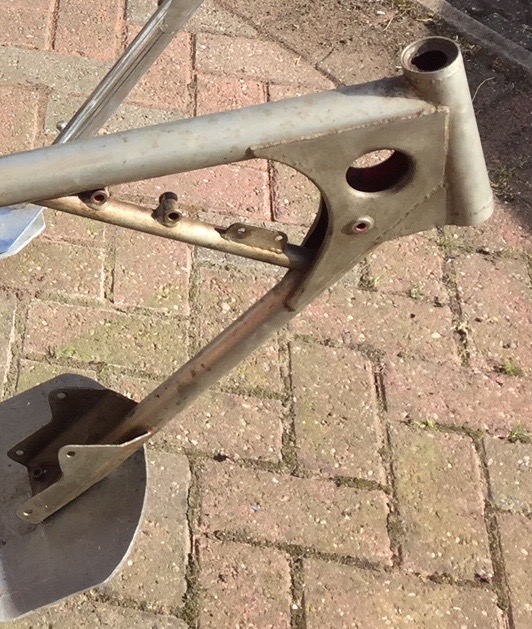

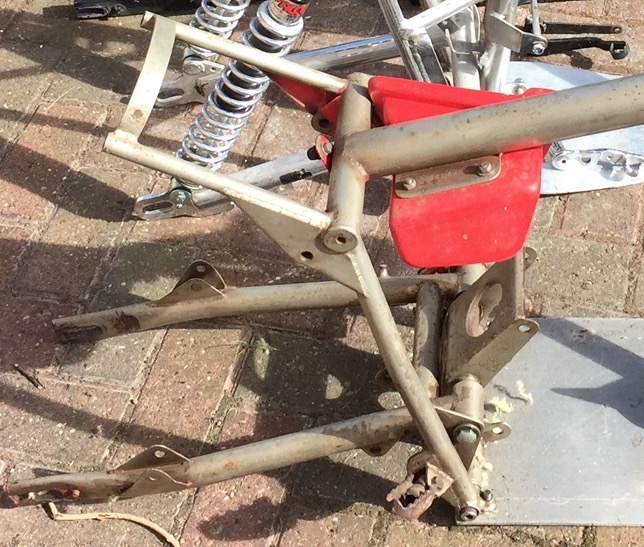

Just look at this photo, you can see that the later Mike Mills BSA "Legend" frame, was very much the same design as the Jerred Honda frame, but I think the Honda had more rear-shock movement, frame tubes I'm guessing were 1 3/4" for the main top tube, and the seat-tubes 7/8" probably 16 gauge.





Just looking at the steering head details, you can see the same sort of layout again. Even with the diagonal tube that on this machine supported the cylinder head, while on the BSA frame it did this job, and diverted the engine oil too.

You can see the bearing retaining cups are welded onto the steering head tube.



I am in a quandary to how the frames were welded. Some of the welds look  like "Mig", while the gusset reinforcing plates looks like "Tig", but were many companies or people using "TiG' at that time 1980 and the machines would have been expencive...  I had only just about got a "Mig" welder then, and that way of welding was new... So the other alternative was that the long seams were done with the gas torch, I have done this myself...



Pete Jerred now has told me they were built using a "Tig" welder, probably one of the big old first time Miller or BOC,  Jobs.

And he should know, he was around the workshop every night, while frames were being built.



2017...

I have now spoken to Peter this evening, and he has sent me a load of unpublished photos, so you have that to look forward too, also Pete said he will give me a run-down on each of these pictures.

So now a very interesting start to this page, and more that you will not believe later.

Taster, / 14" square spring Girling.Gas shocks were fitted.



Details of Honda TL engine increase in volume and stroke, using top hat bush etc.



And loads of "Jerred Honda", Photo's...



Photo Courtesy Peter Jerred,©...

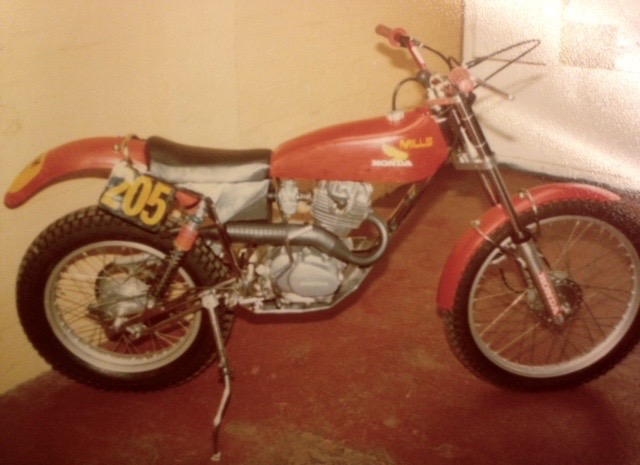

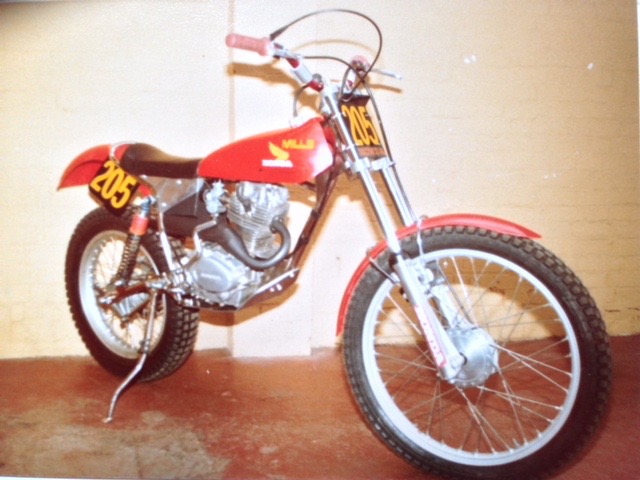

A good shot of the Jerred-Mills version of the little TL 125-200 Honda.



Photo Courtesy Peter Jerred©...

And a side shot of the Jerred-Mills Honda.



Photo Courtesy Peter Jerred©...

 The full three man team for the 1979 SSDT.

Nick Holt, Nick Fossey, and other name later.





Details later from Pete, on this shot... ©...





And details Later by Pete, on this one ©...





Same on this shot.

This and more photos to come Courtesy Peter Jerred and his ©...



After chatting to Pete Jerred last night, the whole bigger picture about these little machines emerged...

 The frame kits (25) were made in such a way that all parts from an existing Honda TL 125 could be swapped over to the new frame.

 The kit consisted of the frame, the glass-fibre air-box, and covers, along with the seat, and folded alloy tank, also made by engineer -blacksmith and metal wizard, Bill Wooldridge...

Bill later moved to the USA, and worked on race cars for Hans Stuck and others.

Pete's career was always like, building bridges, well that is what he did has a civil engineer, the list of projects he worked on is as long as the roads that pass over them... One bridge I recall was in Kings Lynn, Norfolk.

 The connection too Mr Mike Mills is that Pete Jerred and Mike were brothers in law.

 I will get into the way the engines were increased in capacity later.

But we all know that nothing is new, and most things have been done before.

 But with the combination of a Wizard and forward thinking designer that Mike Mills was, and the drive from a man that was moving forward like Pete Jerred, not only were the frames special at the time, but other elements were first tried on these machines.

 Square route section springs on Girling Gas shocks for one.

Long travel forks incorporating Bultaco sliders, were also tried...

 Pete has a list of machines he was involved with before the Honda's came about, including a Zundapp.



And then there are the bikes he still owns today.

So this story will just continue to run and run.

 great stuff...



30/06/2018.

 New material from Alan "J", and Peter Jerred.

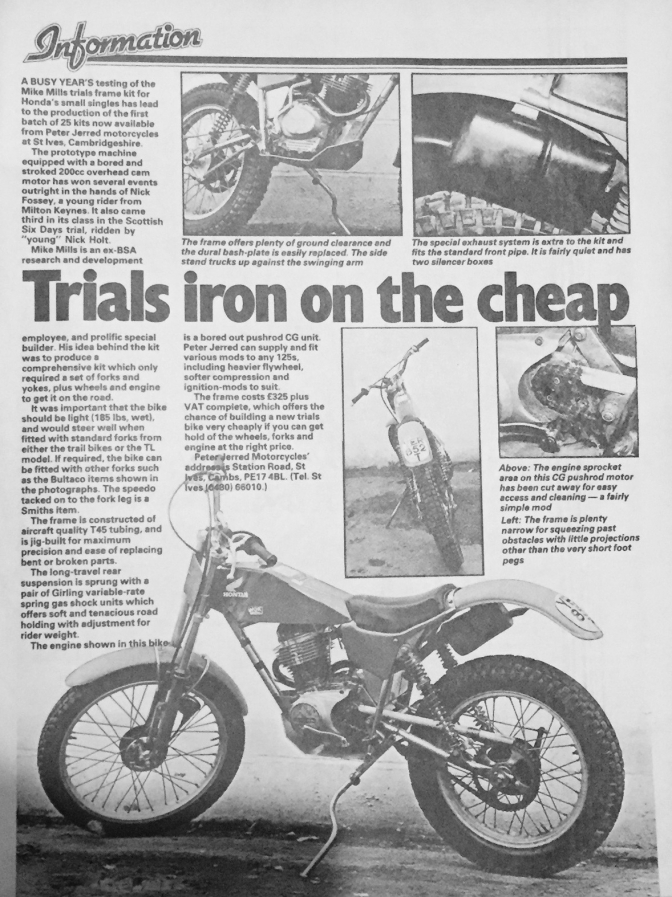

From Alan "J", he thinks 1979 article, for me to use he says, so please respect that...



This brings the bigger picture into prospective don't you think.

And I am sure these kits would sell today, if still made...

Far ahead of their time. I think.

And you probably know what I think about the little Honda "CG" type engine.



Photo Courtesy Peter Jerred.©...

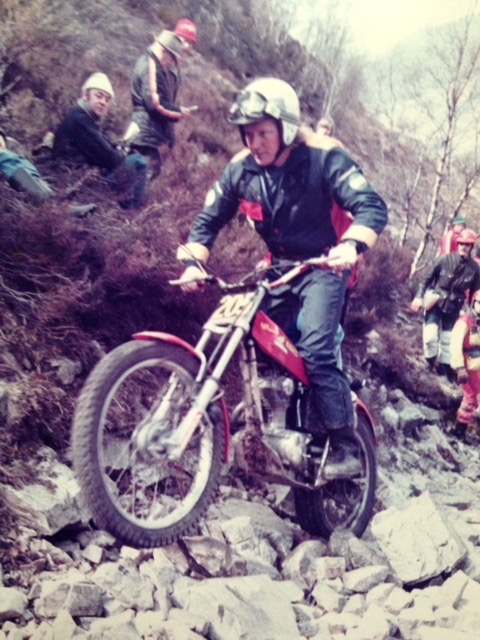

Here Nick Holt riding that same Jerred Honda machine with the CG Honda engine, bored bigger, and out  too 175cc, competing in the Scottish Six Days trial on the Ben Nevis sections...

~~~~~~~

January 2022...

Peter Steilberg from the USA has sent me this. And I said I would          put it onto this page as it looks very much like a Mike Mills designed frame... Or even a Steve Wilson...





Peter competing in the USA Vintage trials...

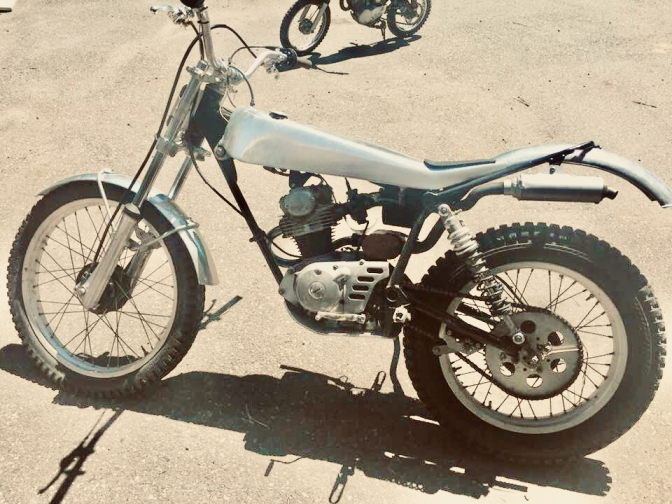

I thought you might find my trials TL 175 interesting:  The frame is VERY similar to the Fraser and the Jerred...  Power is by a Honda TL stroker 175 and it has a custom brass flywheel, requiring us to build a spacer for the side cover and mill it out.



It has a custom aluminium tank my friend made, and Honda Elsinore forks and wheels.



The carb breathes through the backbone like a Can Am Mx6 motocrosser with the intake up by the steer tube and the airfilter back by the carb.



Under the tank it looks much like this picture you posted:

It also has the high footrest position that was on the Jerred bikes...





The back loop looks like a Fraser on Peter's frame...





Peter is going to try and get more information about this little bike...





Was this little bikes frame built in the USA that is the Question...

And could it have been built by Bill Wooldridge...





Jerred ...Honda  Fraser...Honda  or What?...Bill Wooldridge...?



Got to get back to you.
