Lets Build Mini-Otter Number Five...



21/07/2019...









This is Number Two...

~~~~~~~

So Number Five..



With saying I would only build one Mini-Otter Super-Cub at one time.

I now find myself building number Five.

And also improving the jig it is built on, for ease of a production run if that now comes later.

Five you say, yes I know but every one has either had improvements to the design or modifications that seemed better at the time, size and make up of tubing and even section. But you always find something not to your liking...

I keep looking at Number Two and think it is the best, but it has its faults...

So anyway you have probably seen the write-ups on the others in the collection that it now is.

The main reason to build number Five now is that I needed a frame to bronze weld up using the new gas fluxer.

When I spoke to Howard Fawkes a couple of weeks ago he said, “ Well all you can do is practice the technique you now can do using the "fluxer”.

So instead of wasting rods and materials on doing practice pieces, I thought I would bring forward the next Mini-Otter frame.

I have spent ten days getting the jig and the tubing into that, the way I want it, and in theory, this frame should be best of the bunch.

It is now tacked together in the jig, and with another four or five hours work should be ready to come out of that jig, and into the other shop for welding with the fluxer.

I have this week bought another YX 140 engine for the bike and sorted wheels and forks. I just need to make another tank cover and seat, and construct an exhaust system… But that will take another week.

But the frame welding is the main importance, and we will see how that goes.

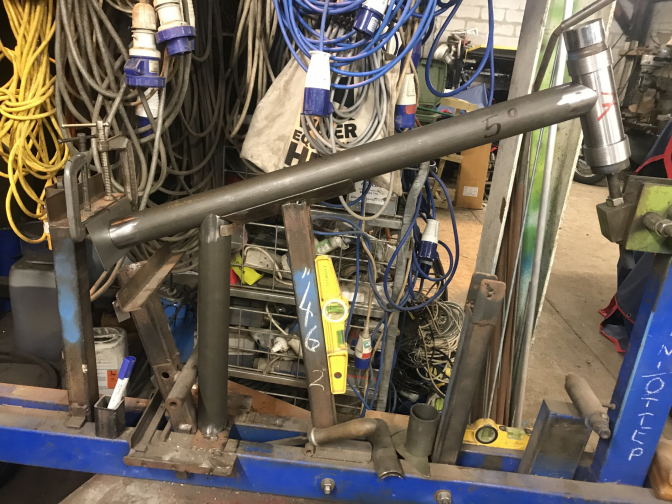

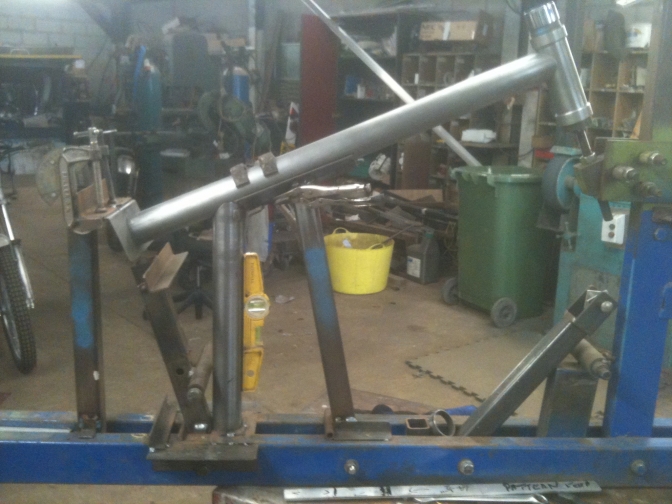

Jig modifications to help keep frame tubes true...

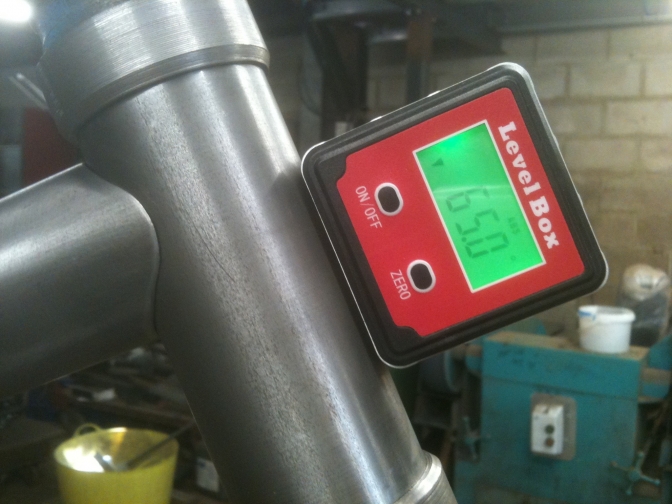

I have now set the steering head angle to 65 degrees.

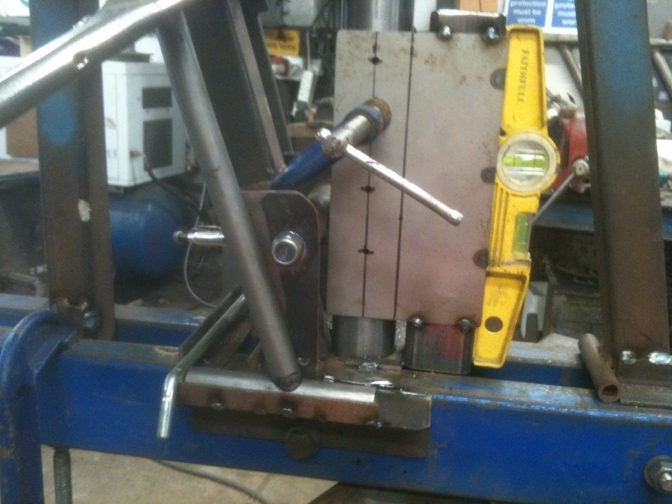

A new jig attachment to get the engine mounting tube holes more accurate.

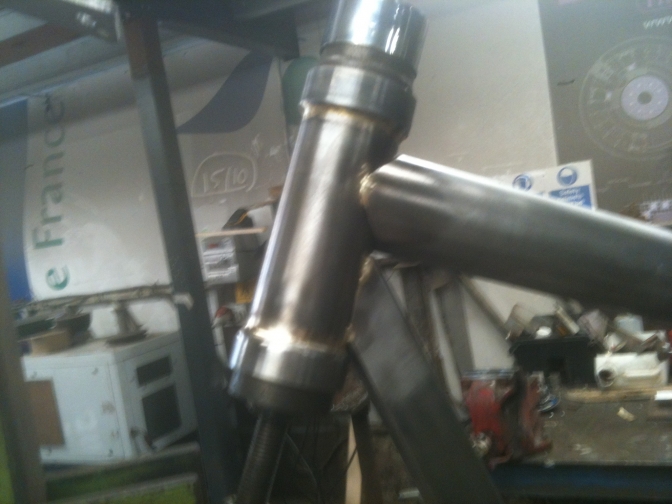

Bearing cups "brazed" into the steering head tube, and frame tubes tack bronze welded.

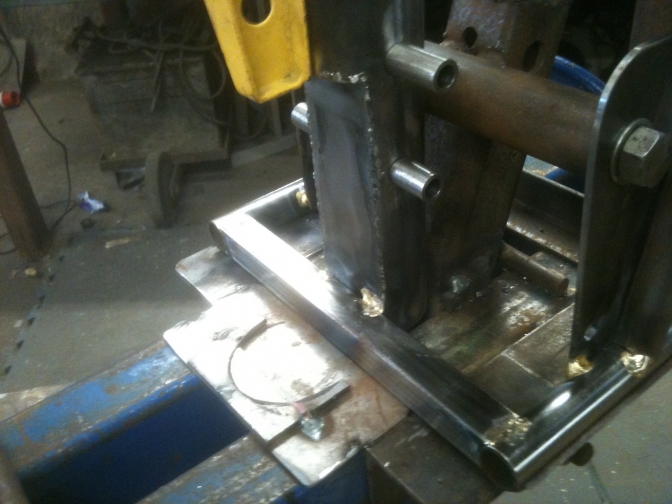

Bottom frame cross tube now substituted for square section, for better support and convenience.

I have gone back to using the bolt on footrest plates now, that incorporates the rear brake pedal mounting as well.

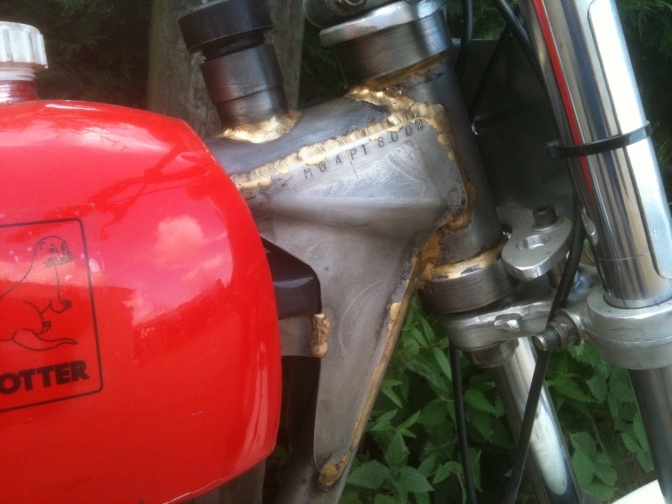

This time I must remember to stamp the frame number onto the headstock plate before I weld it, forgot on number four, and had to make a separate plate as it is impossible to get a good stamp when fitted as the large tube bounces.

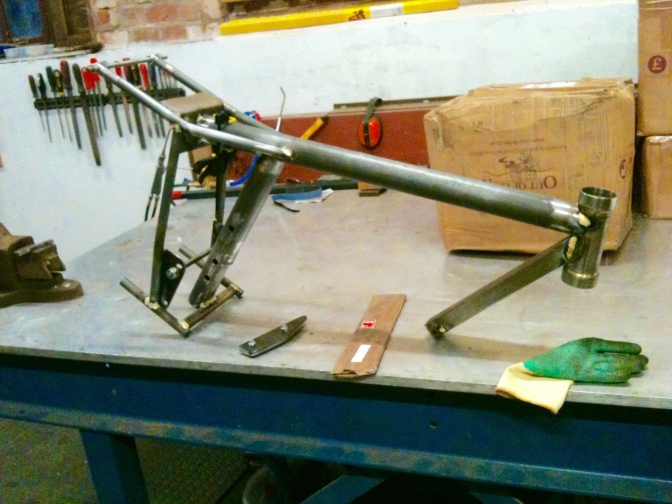

This is Number Two again as you can see.

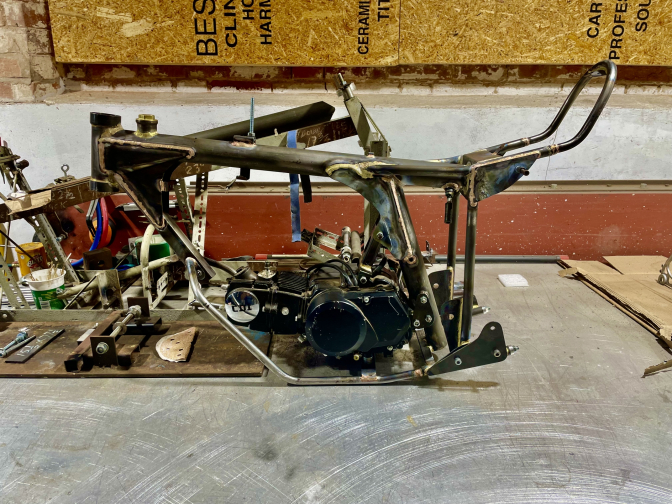

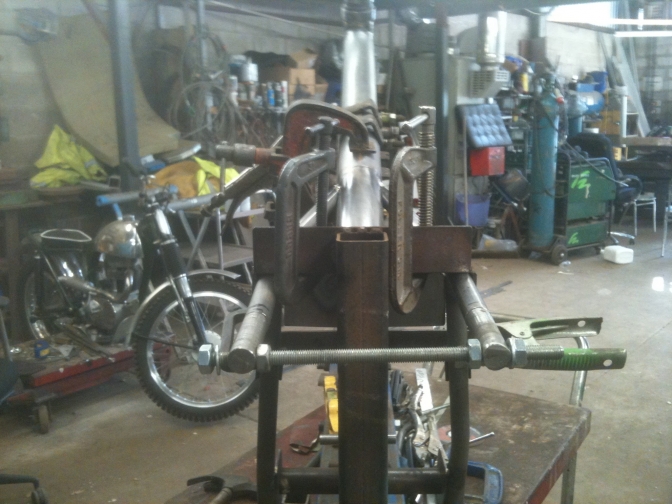

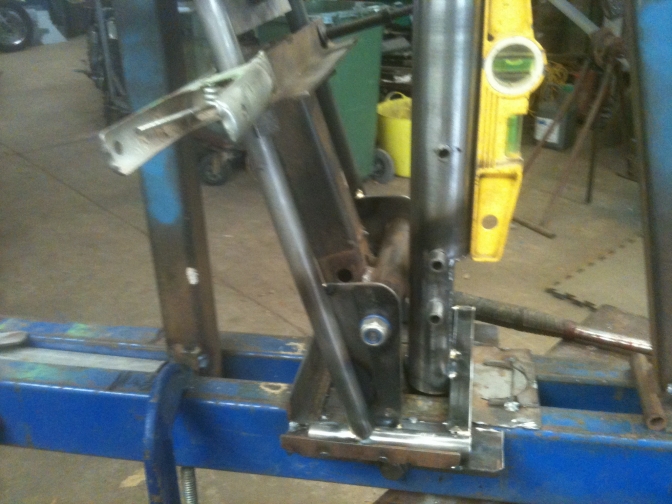

A jig was constructed to keep the seat tubes parallel before tack welding, the mudguard loop then slides nicely into these tubes without effort.





The critical part in the set up is to keep the engine mounting and swinging arm pivot holes parallel... And this is not easy, even with the new jigs.



 More Later with weld photos.





This superb shot taken in "Bimms Field" Isle Of Man by, Steven Corran ©...

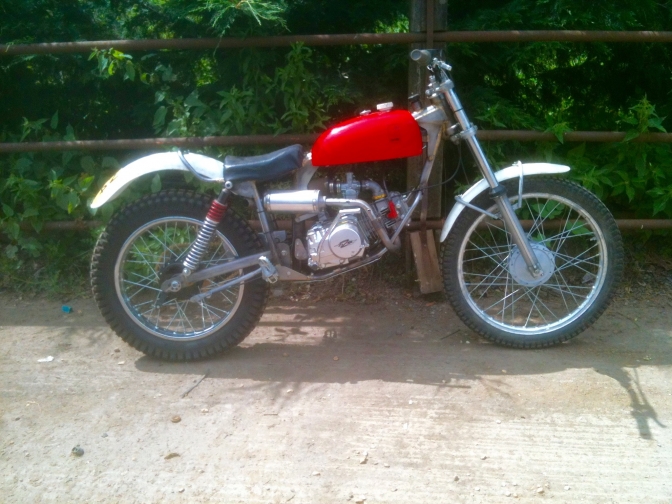

 Brian Bedford riding Mini-Otter One, just makes you want to keep on building  these little machines ...

There has just got to be a market for them in the future.



16/08/2019



Had a good couple of days now on Mini-Otter Number Five...

 I have got the jobs done that seem to take an age on these builds especially the bash plate carrying frame work...

 This is not straight forward, and allowances have to be made for exhaust clearance, and also clearance to take the side covers off of the engine without taking the engine out, or frame work off...

The good thing is though you can take this framework off quickly for repair or replacement... And also to remove the engine quickly...

 I have thought about these, eventually we seem to have got them right...

The swinging arm also has the quick release swinging arm pivot bushes that makes replacement of these into a simple task, without using heat and swear words...

 Good stuff really ...





I do like these little motors, and they seem to get better with every one I buy...

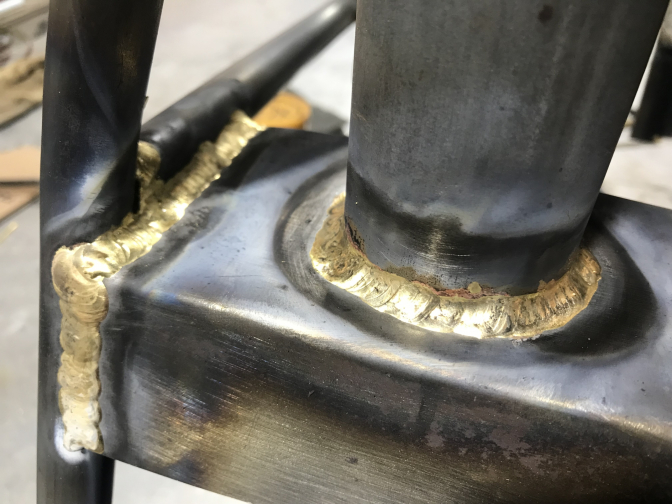

The bronze welding is so much better now we have the gas-fluxer.. And the frame design has come on a treat...





Bronze welding is now another step forward using the Fluxer...

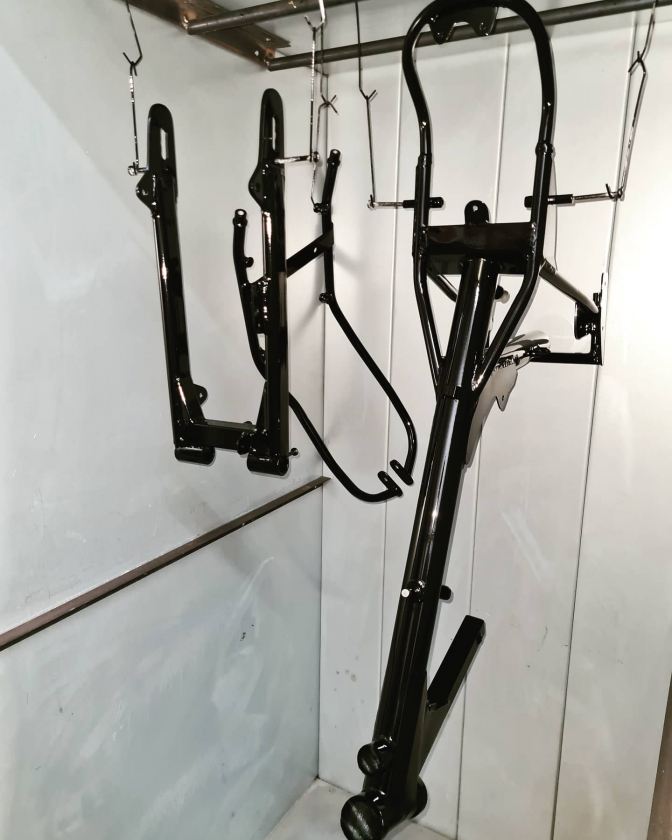

Here is frame Number Five in the powder-coaters oven in Warwick... good job they made of it too thank's Guy's......



More Later...

05/12/2019...



Number Six ...

Well if you have looked at the New YouTube Channel you will now know that I have built Mini-Otter frame Number Six.

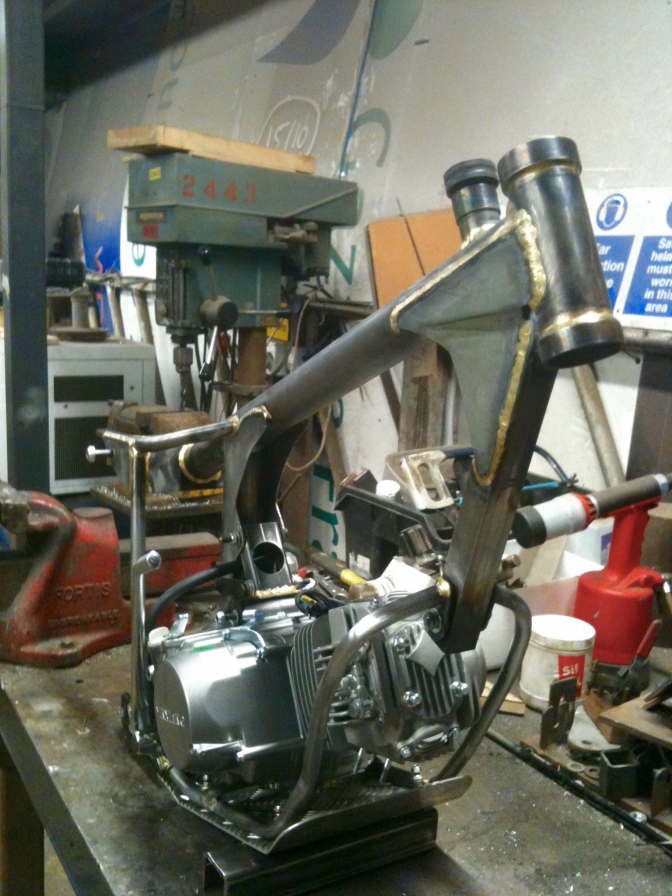

 And this is now in the second workshop, tacked up, ready for me to use the fluxer to finish the bronze welds...

I must say, that I am now pleased with the frame we have got too. And  the time has come probably now in the spring of next year, to build up a few of the Mini-Otters for Sale... I have interest, in this happening, from here at home and from abroad..





 Mini-Otter Frame Six in the bronze welding shop...

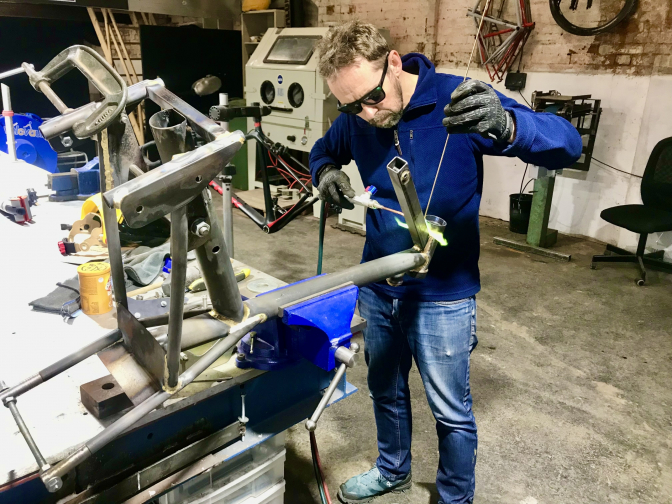

After some time we have now got around to finishing the welding up of frame number six... And Lee Prescott took over the torch for a few of the welds to get his eye in on the motorcycle side of the operation...

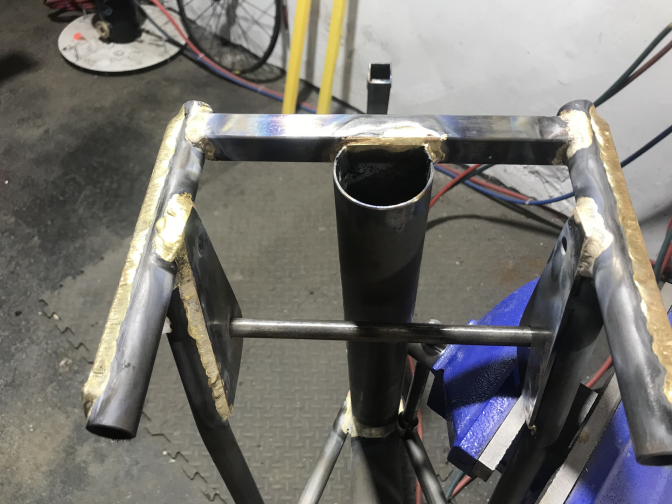

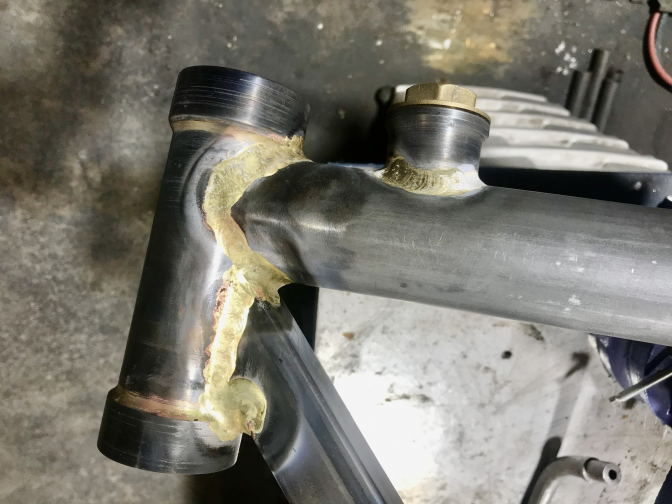

The welding has so much improved on these frames now we have the right system in place... IE. the right rods, the fluxer, and the settings, and don't forget the skill of the welders...





Rod's are Sif Bronze 3.5 101... and Sif 2.5 number 1. for gusset plates...

We also use some nickle silver rods for some of the welds IE. seat loop boss's.. fuel boss..





For such a simple frame? the amount of welding rods and time spent on each joint makes it a labour of love, because you would hate to charge for it! But I may be wrong because I have just seen a frame TIG welded and a work of art, but with a price tag of £3,800...

And not out of T45 tubing like these Mini-Otter frames...



Photo's Courtesy "Otterman"...

31/05/2023...

Mini-Otter frame Number Six now finished ...

So watch this space I think is the term...Later...

Well I think this is a work of art too... well I have loved finishing this frame...Just a shame I have now taken the jig apart... So there are SEVEN, Mini-Otters and that is it...



~~~~~~~

15/10/2020...

Number Seven...

After building the field bike up a couple of weeks ago, and having a ride on the little bike with the Lifan 125 engine fitted...

 There was only one thing to do, "I want an engine like that" I said to my self, so lets build another frame for one of them.

 Well it had got to be another Mini-Otter then had it not.

 So for the past week I have spent time at the lathe machining up another set of spacers etc, and it was not easy with another bout of sinusitis and labyrinthitis, all part of the Fibromyalgia syndrome...

 But with a chance that I catch the Covid?, I am doing what I can, and looking forward to riding Mini-Otter Seven around the same fields as the "field bike"...

So next week I break out the jig for the frames again, and see if I can get another tacked up...

Could be a Christmas present for me?



22/10/2020...

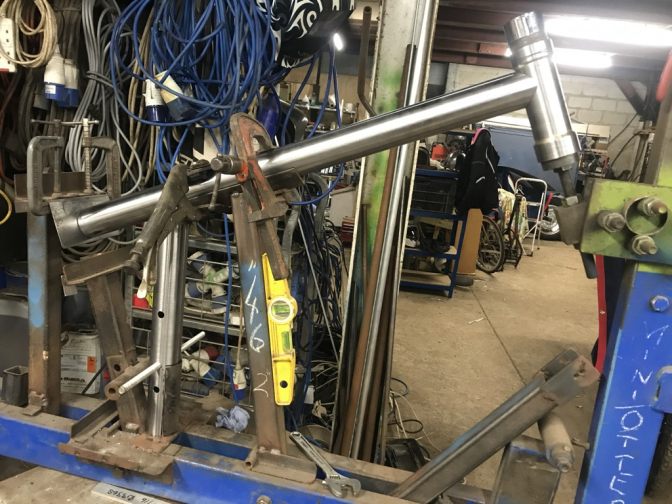

Took advantage of a fine and pleasant afternoon at the workshop, and after a couple of little notching glitches, I proceeded to get the two main-tubes and the steering head matched together ready for tack welding...

This time for the first time I wrote on the jig the two angles for the notcher, Why? well I before kept thinking I had saved them until it was time to build the next frame.

 That is the beauty of doing frames in batches like Howard Fawkes  at Faber it is far easier to do ten at once than it is a couple, or one.  Got to be a motto there somewhere...

 Anyway I now have it on record... Just hope the weather stays fine so I feel well, and more progress will be made on Number Seven...





~~~~~~~~

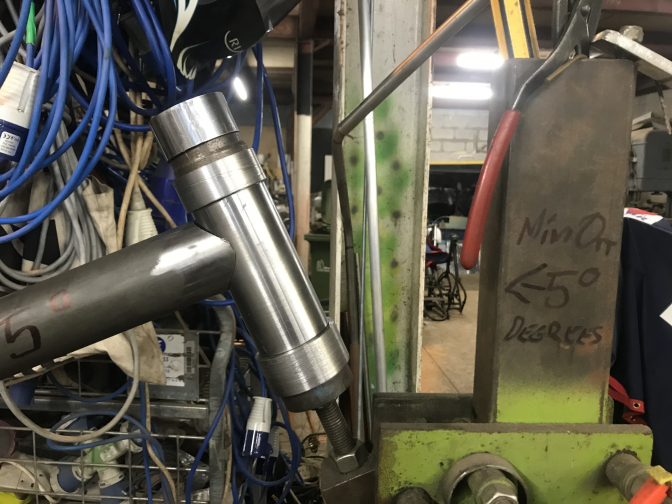

Set Notcher at 5 degrees for top tube to headstock joint...64.45 head angle...







15/11/2020...



I have over the past week had three inquiries about the Mini-Otter frames

So if we can get over this Covid thing, I am determined to build a batch of five frames in the spring of 2021..

First come first served basis.

Over the winter I will build a production jig for more accuracy on the now finalised design of the frames, and don't forget these frames are capable with different engine plates and sub assembly of even fitting a  BSA unit engine...



24/05/2021...



Well after another long Covid lockdown, and with two jabs that have given me "Jip" I have managed to get back to the workshop after seven months away.

A day was spent just tidying my benches etc, don't forget this is a busy workshop, and brother has taken to adding vintage tractors to now restore.

 I keep thinking I have gone back in time, Fordson tractors everywhere, just like when I did my apprentieship working on them...

Well yesterday I got back to working on Mini-Otter Seven frame, and hope to get it all tacked up by the weekend. I hope. This time...



More Later.

18/09/2021...

 The Number Seven frame is now finished and sat on my welding bench waiting to get sand blasted, and then painted, yes I think I am going to paint this one... The paint we are now using for the cycles is superb, and with a final coat of "Clear-Coat" is probably thougher than powder coat.

 We will see...

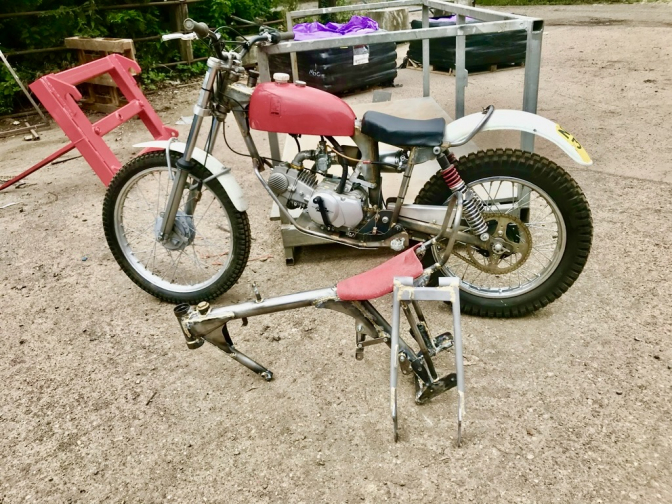

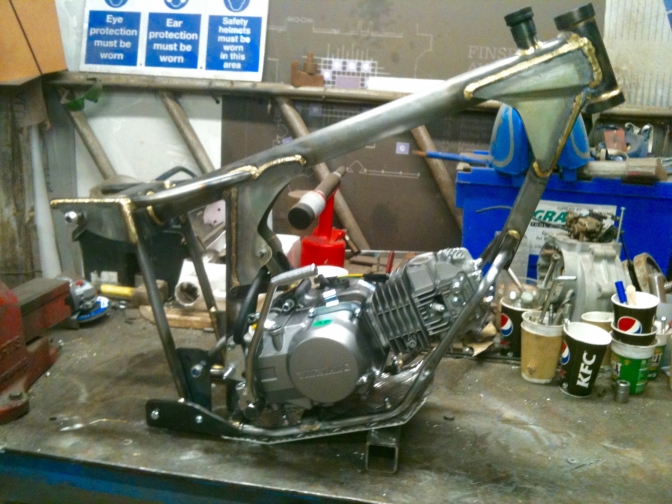

Number Seven in front of Number Two...under run frame also finished but not in photo...



More of the Mini Otter build ups later...
